OX7000
Commercial Air Filtration System

7000 CFM • T-Pattern Airflow • Industrial High-Capacity Filtration

The OX7000 is a high-capacity industrial air cleaner engineered for large-scale installations and demanding environments where dust, smoke, and airborne particulate must be controlled continuously. Its T-pattern airflow design uses dual inlets and center exhaust to maximize cleaning efficiency while helping reduce installation and servicing costs.

Built with a durable 16-gauge cold-rolled steel cabinet, the OX7000 delivers 7,000 CFM through a high-capacity filtration system with pleated pre-filters and MERV 15 bag filters. A heavy-duty belt-driven fan, adjustable 4-way grilles, and chemical-resistant powder coat finish make it a strong fit for industrial and commercial facilities looking to improve air quality while reducing makeup air costs.

Industrial 7,000 CFM airflow for large facilities and heavy contamination environments.

T-pattern airflow with multiple cabinet configurations for flexible installation layouts.

Heavy-duty 5.0 HP belt-driven fan, high filter surface area, and chemical-resistant finish.

Request A Quote
OX7000 commercial air cleaner
OX7000 air cleaner

OX7000 Configurations

AIRFLOW7,000 CFM
AIRFLOW PATHT-Pattern with Dual Inlets and Center Exhaust
SOUND LEVEL82 dB on high
INPUT POWER208-230 VAC / 460 VAC · 60Hz · 14.0-13.0 / 6.5 Amps
MOTOR / FANTEFCBB 5.0 HP Belt Driven Fan
DISCHARGEAdjustable 4-way grilles
FINISHChemical-resistant powder coat
PRE-FILTER MEDIA35% Pleated Pre-Filters
PRIMARY FILTER MEDIAMERV 15 8-Pocket Bag Filters
OX7000 2x1 configuration

OX7000 2x1

DIMENSIONS48" W × 28" T × 82" L
PRE-FILTER(4) 24" × 24" × 4" · 35% Pleated Pre-Filter
PRIMARY FILTER(4) 24" × 24" × 22" · MERV 15 8 Pocket Bag Filter
HANGING WEIGHT505 lbs.
OX7000 2x2 configuration

OX7000 2x2

DIMENSIONS48" W × 52" T × 82" L
PRE-FILTER(8) 24" × 24" × 4" · 35% Pleated Pre-Filter
PRIMARY FILTER(8) 24" × 24" × 22" · MERV 15 8 Pocket Bag Filter
HANGING WEIGHT670 lbs.
OX7000 2x3 configuration

OX7000 2x3

DIMENSIONS48" W × 76" T × 72" L
PRE-FILTER(12) 24" × 24" × 4" · 35% Pleated Pre-Filter
PRIMARY FILTER(12) 24" × 24" × 22" · MERV 15 8 Pocket Bag Filter
HANGING WEIGHT825 lbs.

Replacement Filters

OX7000 filters

PRE-FILTER STAGE

24" × 24" × 4" | 35% Pleated Pre-Filters

The number of pre-filters varies by cabinet configuration, ranging from 4 to 12 filters depending on model layout.

PRIMARY FILTER STAGE

24" × 24" × 22" | MERV 15 8-Pocket Bag Filters

High-capacity bag filters provide large surface area and efficient particulate collection for industrial dust, smoke, and heavy-duty air cleaning applications.

OX7000 configurations use the following filter counts:

2x1: (4) pre-filters / (4) bag filters

2x2: (8) pre-filters / (8) bag filters

2x3: (12) pre-filters / (12) bag filters

Unit Options

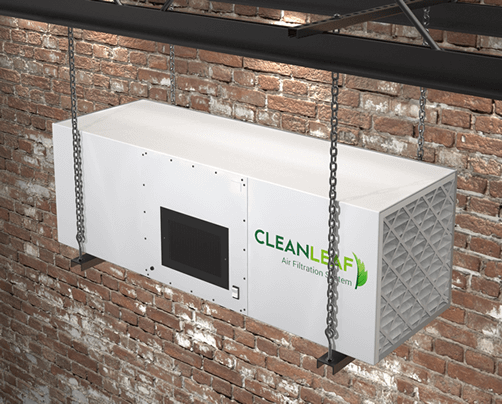

Hanging Brackets (52")

Hanging Brackets (52")

52" Hanging Brackets for OX3200, OX4000, OX4500, OX7200

SKU: BOP-STRUT52

Hanging Brackets (76")

Hanging Brackets (76")

76" Hanging Brackets for OX3200, OX4000, OX4500, OX7200

SKU: BOP-STRUT76

CleanLeaf's warranty is for the authorized distributors and ultimate purchasers (end users) of its products.

CleanLeaf warrants its products for two years from ship date and covers defects in both material and workmanship. Labor and freight are not covered under the warranty policy.

Any claims made pursuant to this warranty by the customer or distributor are conditional upon CleanLeaf's inspection of the product upon which the claim is made.

Products claimed under this warranty shall be shipped directly to CleanLeaf, at CleanLeaf's expense, unless otherwise stated. Approval must be issued for the warranty claim before such a shipment will be accepted. Should the claim be approved, CleanLeaf will either replace the defective product or issue a credit/repayment.

This warranty is void on all CleanLeaf products if any product has been misused, mistreated, or used other than for its specified application.

Quick Answers to Common Questions

Find quick answers to the most common questions about our services, solutions, and process.

See All FAQs

Air filtration system selection depends on:
• Room size (cubic footage)
• Air changes per hour (ACH)
• Type of contaminants (dust, smoke, mold, odors, VOCs)
• Required filtration level (bag filter %, carbon weight, HEPA, etc.)

Our team evaluates airflow dynamics and contaminant load to recommend a properly sized solution — not just a box with a fan.

Most CleanLeaf and Blue Ox models operate between ~48–66 dBA, depending on airflow setting and unit size.

Lower-speed settings and optional silencers are available for sound-sensitive environments.

Most units are plug-and-play on standard 115V power and include suspension or bracket mounting options.

For larger commercial or industrial applications, we may recommend airflow planning to optimize circulation patterns.

Filter life varies by environment and contaminant load. Typical ranges:
• Pre-filters: 1–3 months
• Carbon media: 6–12 months
• HEPA or high-efficiency bags: 6–18 months

Higher particulate or odor loads may shorten intervals.

Our systems are engineered to capture and control:
• Dust
• Smoke
• Mold and Mildew
• Odors and VOCs
• Fine particulate

Filtration stages may include pleated pre-filters, high-efficiency bag filters, HEPA media, and activated carbon depending on the application.

CleanLeaf offers a 2-year warranty covering defects in materials and workmanship for authorized distributors and end users.

To make a claim, you must get approval first. Approved claims are resolved with a replacement or credit/refund. The warranty is void if the product was misused or used outside its intended purpose.

We also provide ongoing support and access to replacement filters.
