OX3500C-CF
Commercial Air Filtration System

3500 CFM • T-Pattern Airflow • Carbon After-Filtration

The OX3500C-CF is a heavy-duty industrial air cleaner designed for demanding environments that require strong particulate collection along with added carbon filtration. Its T-pattern airflow design uses dual inlets and a center exhaust to maximize airflow efficiency and extend filter life while maintaining high-capacity performance.

Built with a durable 16-gauge cold-rolled steel cabinet, the OX3500C-CF delivers 3,500 CFM through a staged filtration system that combines pleated pre-filters, high-efficiency bag filters, and carbon after-filters. With a heavy-duty TEFCBB belt-driven fan, adjustable 4-way grilles, and industrial-grade construction, it is well suited for commercial and industrial environments dealing with dust, smoke, and odor-related concerns.

T-pattern airflow with dual inlets and center exhaust for efficient high-volume air cleaning.

Multi-stage filtration with carbon after-filters for particulate and odor control.

Heavy-duty belt-driven fan, 16-gauge steel cabinet, and adjustable 4-way discharge grilles.

Request A Quote

OX3500C-CF

AIRFLOW	3,500 CFM
AIRFLOW PATH	T-Pattern with Dual Inlets and Center Exhaust
DIMENSIONS	24" W × 24" T × 72" L
SOUND LEVEL	72 dBA @ 5'
INPUT POWER	208-230 VAC / 460 VAC · 3PH · 6.0-5.8 / 2.9 AMPS
DISCHARGE	Adjustable 4-way grilles
FINISH	Chemical-resistant powder coat
MOTOR / FAN	TEFCBB 2.0 HP belt driven fan
PRE-FILTER	(2) 24" × 24" × 4" · 35% Pleated Fiber Pre-Filter
PRIMARY FILTER	(2) 24" × 24" × 15" · 95% 12-Pocket Bag Filter
AFTER FILTER	(2) 24" × 24" × 2" · 9 lb. Carbon After-Filter
HANGING WEIGHT	275 lbs.

OX3500C-CF Cut Sheet OX 3500C-CF Accessories OX3500C Owner's Manual

Replacement Filters

STAGE 1: PLEATED PRE-FILTERS

(2) 24" × 24" × 4" | 35% Pleated Fiber Pre-Filters

Captures larger particulate and protects downstream filters for longer service life.

STAGE 2: BAG FILTERS

(2) 24" × 24" × 15" | 95% 12-Pocket Bag Filters

High-efficiency bag filters designed for fine particulate and smoke collection in demanding applications.

STAGE 3: CARBON AFTER-FILTERS

(2) 24" × 24" × 2" | 9 lb. Carbon After-Filters

Provides an added stage of odor and gas adsorption for applications that benefit from carbon filtration.

Unit Options

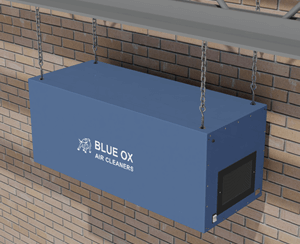

Cast Eyebolts

Cast Eyebolts4 eyebolts pre-installed on the unit

SKU: BOP-EYEBLTC

CleanLeaf's warranty is for the authorized distributors and ultimate purchasers (end users) of its products.

CleanLeaf warrants its products for two years from ship date and covers defects in both material and workmanship. Labor and freight are not covered under the warranty policy.

Any claims made pursuant to this warranty by the customer or distributor are conditional upon CleanLeaf's inspection of the product upon which the claim is made.

Products claimed under this warranty shall be shipped directly to CleanLeaf, at CleanLeaf's expense, unless otherwise stated. Approval must be issued for the warranty claim before such a shipment will be accepted. Should the claim be approved, CleanLeaf will either replace the defective product or issue a credit/repayment.

This warranty is void on all CleanLeaf products if any product has been misused, mistreated, or used other than for its specified application.

Quick Answers to Common Questions

Find quick answers to the most common questions about our services, solutions, and process.

See All FAQs

Air filtration system selection depends on:
• Room size (cubic footage)
• Air changes per hour (ACH)
• Type of contaminants (dust, smoke, mold, odors, VOCs)
• Required filtration level (bag filter %, carbon weight, HEPA, etc.)

Our team evaluates airflow dynamics and contaminant load to recommend a properly sized solution — not just a box with a fan.

Most CleanLeaf and Blue Ox models operate between ~48–66 dBA, depending on airflow setting and unit size.

Lower-speed settings and optional silencers are available for sound-sensitive environments.

Most units are plug-and-play on standard 115V power and include suspension or bracket mounting options.

For larger commercial or industrial applications, we may recommend airflow planning to optimize circulation patterns.

Filter life varies by environment and contaminant load. Typical ranges:
• Pre-filters: 1–3 months
• Carbon media: 6–12 months
• HEPA or high-efficiency bags: 6–18 months

Higher particulate or odor loads may shorten intervals.

Our systems are engineered to capture and control:
• Dust
• Smoke
• Mold and Mildew
• Odors and VOCs
• Fine particulate

Filtration stages may include pleated pre-filters, high-efficiency bag filters, HEPA media, and activated carbon depending on the application.

CleanLeaf offers a 2-year warranty covering defects in materials and workmanship for authorized distributors and end users.

To make a claim, you must get approval first. Approved claims are resolved with a replacement or credit/refund. The warranty is void if the product was misused or used outside its intended purpose.

We also provide ongoing support and access to replacement filters.
